NGS supplies the complete range of soil retention solutions — Mechanically Stabilized Earth (MSE) walls, Gabion box systems, and plantable soil retention. From highway and infrastructure retention through architectural and landscape walls.

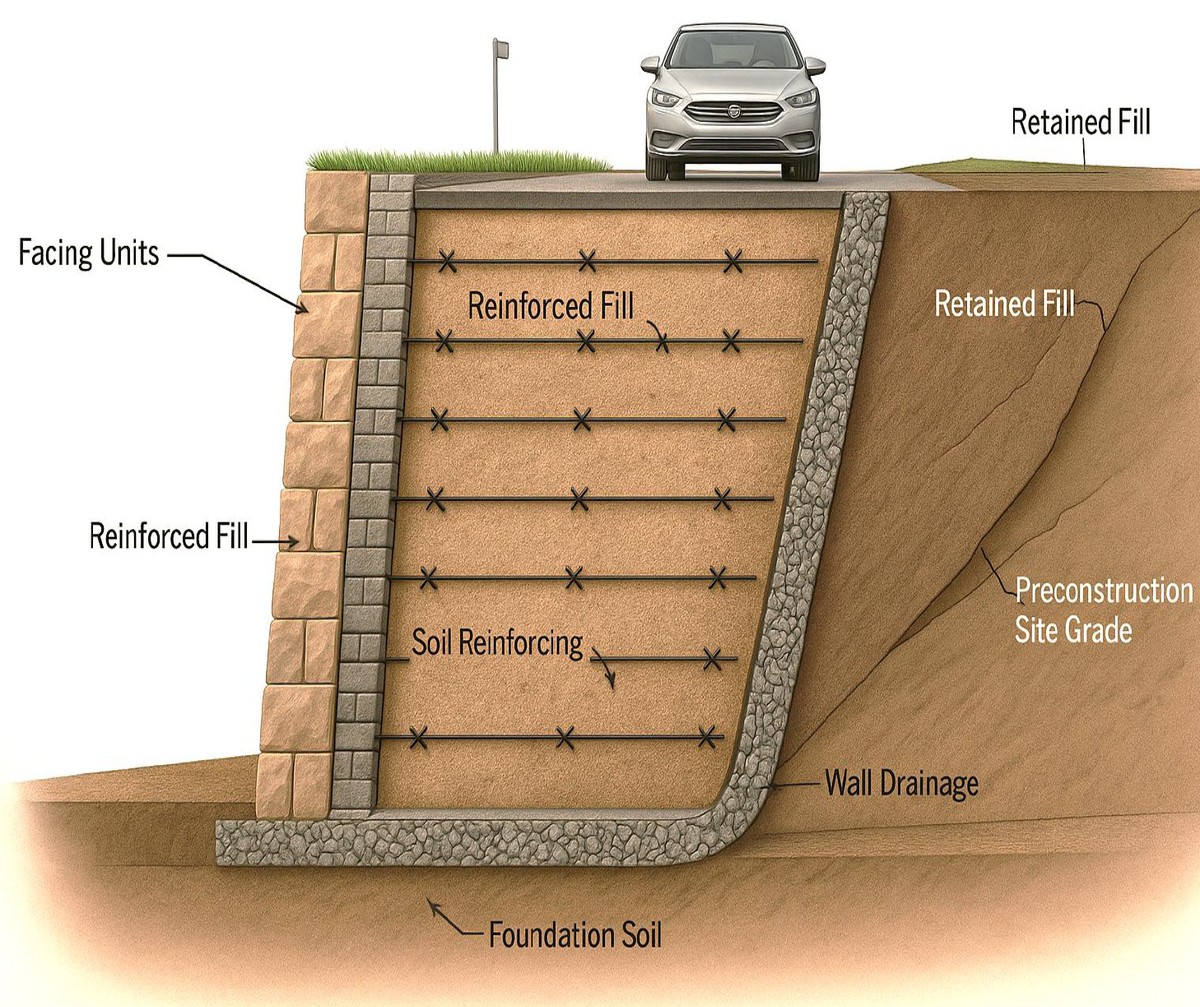

Mechanically Stabilized Earth (MSE) walls use horizontal layers of geogrid reinforcement embedded in compacted backfill to create gravity retaining structures. The reinforcement creates a composite mass that supports its own face — eliminating the need for massive concrete cantilever walls.
For Saudi infrastructure projects — highway embankments, bridge abutments, infrastructure retention — MSE walls are typically 30-50% more economical than reinforced concrete alternatives, faster to construct, and offer a wider range of architectural finishes.
Precast concrete facing panels with geogrid reinforcement. The standard solution for major highway and infrastructure retention. Smooth or architectural panel finishes.
Modular concrete block facing units, often with split-face architectural finishes. Common for landscape, parking, and lower-height infrastructure walls (up to ~12 m).

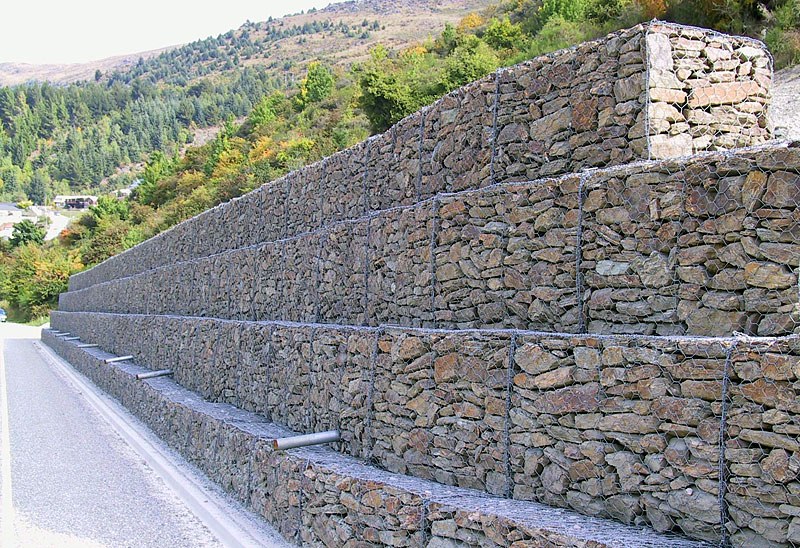

Rock-filled wire mesh boxes stacked to form gravity walls. Permeable, robust, and architecturally distinctive. Standard for riverbank protection, road embankments, and slope toes.

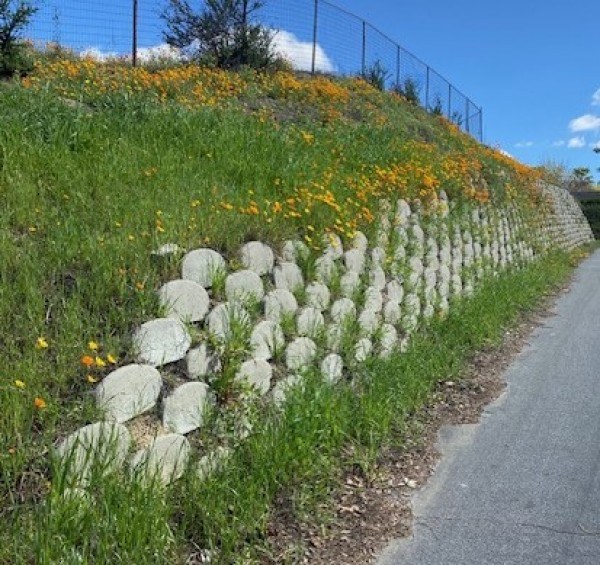

Reinforced soil walls with vegetation-supporting facing — combining structural retention with green infrastructure. Aligned with Vision 2030 sustainability targets.
3D geocellular confinement for slope stabilization — enabling steep slopes (up to 70°) with topsoil retention and vegetation establishment.
Wrapped-face geogrid-reinforced slopes (45°–70°) — economical alternative to retaining walls where face appearance permits a planted slope finish.
MSE walls form the backbone of modern highway construction in Saudi Arabia — supporting embankment heights from 3 m to 40 m, with span lengths exceeding 1 km. The system handles seismic loads, soft foundation conditions, and accommodates utility crossings.
For master-planned districts and landscape projects, plantable soil retention combines the structural function of a retaining wall with the visual softness of a vegetated slope — supporting Vision 2030 green infrastructure objectives.
Share your site conditions, design life targets, and project timeline. Our engineering team will respond with the right specification within one business day.
